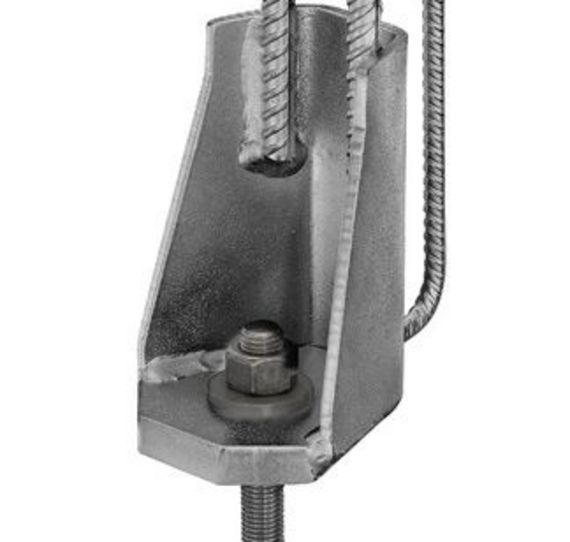

PFEIFER Column Shoe PCC
PFEIFER Column Shoe PCC is designed for the rigid threaded connection of precast concrete columns to foundations and floor slabs. They are cast into the column at the casting yard. At the construction site PFEIFER Column Shoes are connected to the slab or foundation using PFEIFER Foundation Anchors. This system can be used to connect columns to foundations, columns to other columns and beams to columns corbels..
PFEIFER Wall Shoe PWS and PWC
PFEIFER Wall Shoe is available in PWS and PWC versions. The system provides connections to foundations and beween precast wall units. Tensile loads acting perpendicularly to the joint and shear loads in the longitudinal axis of the joint can be supported and transferred. PFEIFER Wall Shoe is used in combination with PFEIFER Foundation Anchors and PFEIFER Connecting Bolt PAP.
Advantages
- Performance verified by ETA 18/0785
- Fast installation without temporary propping
- Immediately load-bearing threaded connections mean no delay
- All-weather installation
- Levelling and adjustment capability.
- High quality materials
- Easy to connect to existing reinforcement (overlapping joint)
- CE marked
Video
Downloads

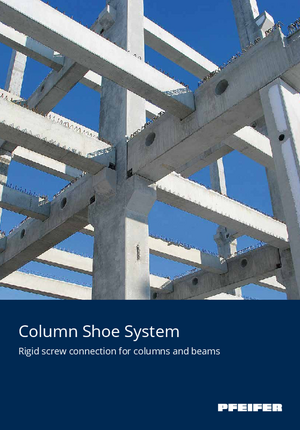

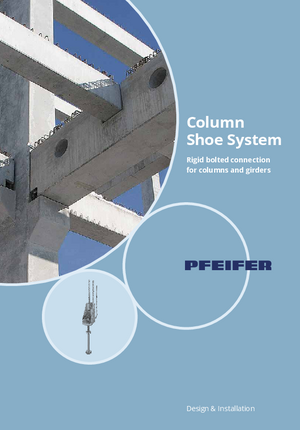

PFEIFER COLUMN SHOE
PFEIFER WALL SHOE

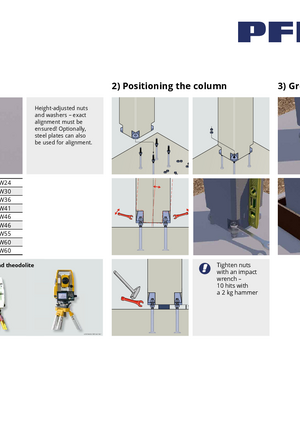

PFEIFER PCC COLUMN SHOE Installation Instructions
PFEIFER PCC COLUMN SHOE Site Installation

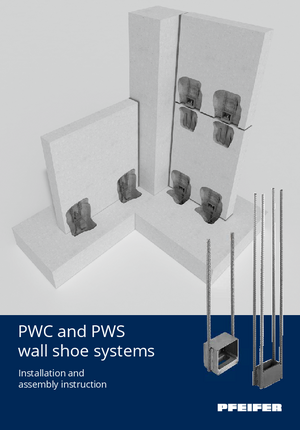

PFEIFER WALL SHOE - INSTALLATION

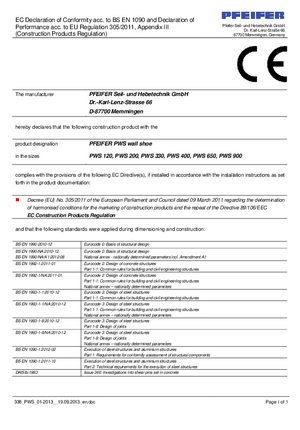

PFEIFER WALL SHOE SYSTEM PWS Declaration of Conformity

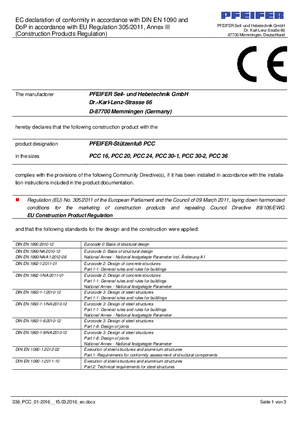

PFEIFER COLUMN SHOE SYSTEM PCC Declaration of Conformity
PFEIFER CONNECTION BOLT PGV Declaration of Conformity

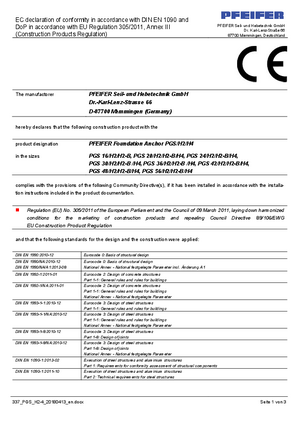

PFEIFER FOUNDATION ANCHOR PGS Declaration of Conformity
PFEIFER COLUMN SHOE ETA-18/0785

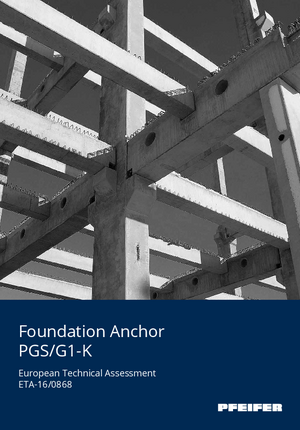

PFEIFER FOUNDATION ANCHOR PGS G1-K ETA-16/0868 Contact us
We are pleased to provide you with advice for every product application. Please contact us when you need assistance or require special custom solutions.
