Threaded Lifting Systems for Precast Concrete Components

PFEIFER Threaded Lifting Systems for Precast Concrete Components

Advantages

With a wide variety of anchor configurations, this system offers solutions for most concrete component dimensions and is suitable for nearly any lifting or installation scenario.

Key Features

1. Versatility:

   • Available in a diverse range of anchor configurations.
   • Suitable for various concrete component dimensions.
   • Adaptable to almost any lifting or installation situation.

2. Comprehensive Accessories:

   • Complete range of accessories for precise anchor installation.
   • Options to recess anchors in concrete, allowing them to be covered or hidden post-use.

3. Extensive Lifting Units:

   • Wide selection of threaded lifting units compatible with the anchors.
   • Capable of handling tension, shear, and rotational lifts.
   • Proper unit selection based on the specific lifting requirement.

4. Engineering Support:

   • Expert consultation available from J&P's engineering department to discuss specific lifting requirements.

Technical Specifications

• Load Range: 0.5 - 20 tons
• Concrete Anchorage Embedments: 30mm to 1400mm

Anchorage Types

• Sockets
• Waved Tail Anchors: Short, Long, and Super Waved Tail
• Flat Steel Anchors
• Sandwich Lifting Anchors
• Bar Anchors
• SAS Manhole Lifting Anchors
• Bolt Anchors

Threaded Lifting Unit Types

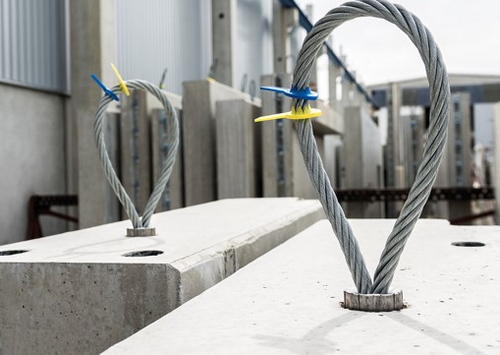

• Lifting Loops: For tension lifts
• Flared Lifting Loops: For tension and parallel shear lifts
• Special Lifting Loop with Pressure Plate: For tension, parallel, and transverse shear lifts
• Swivel Eyes: For tension, parallel and transverse shear, and rotational lifts
• SAS Manhole Lifting Unit
• Super Lifter: For high capacity tension and parallel shear lifts

For detailed advice and to ensure the correct selection for your lifting needs, contact our engineering department.
